#include <default_gui_model.h>

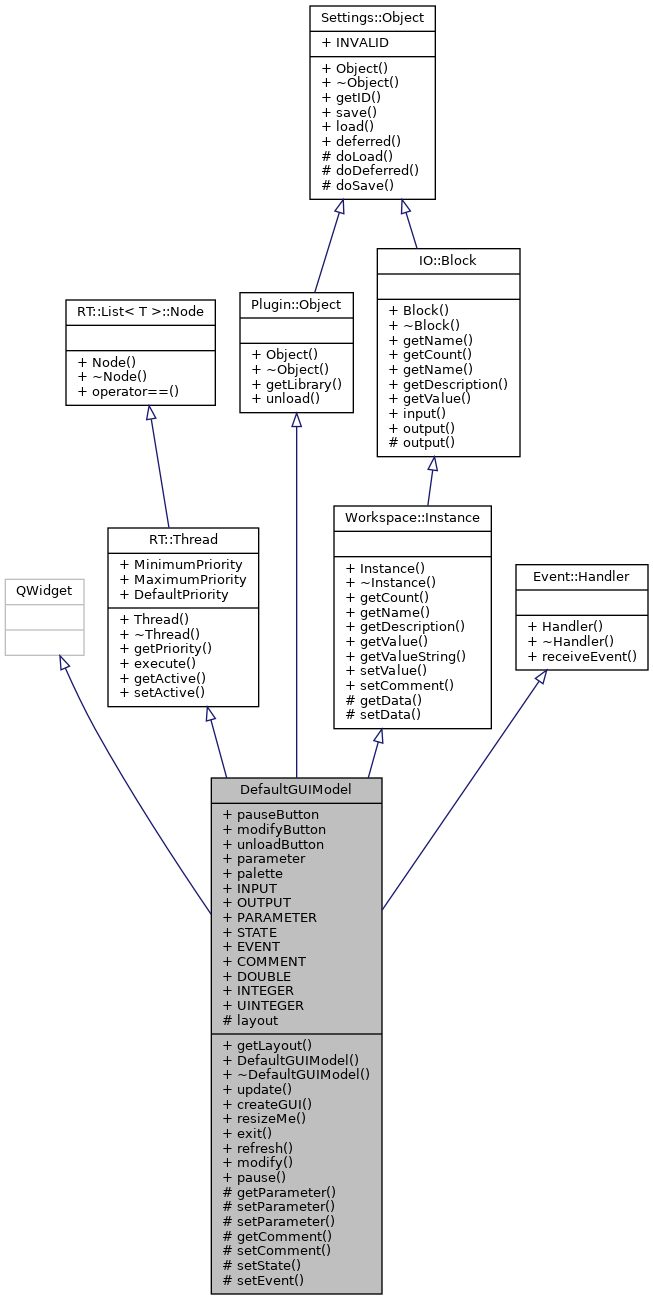

Inheritance diagram for DefaultGUIModel:

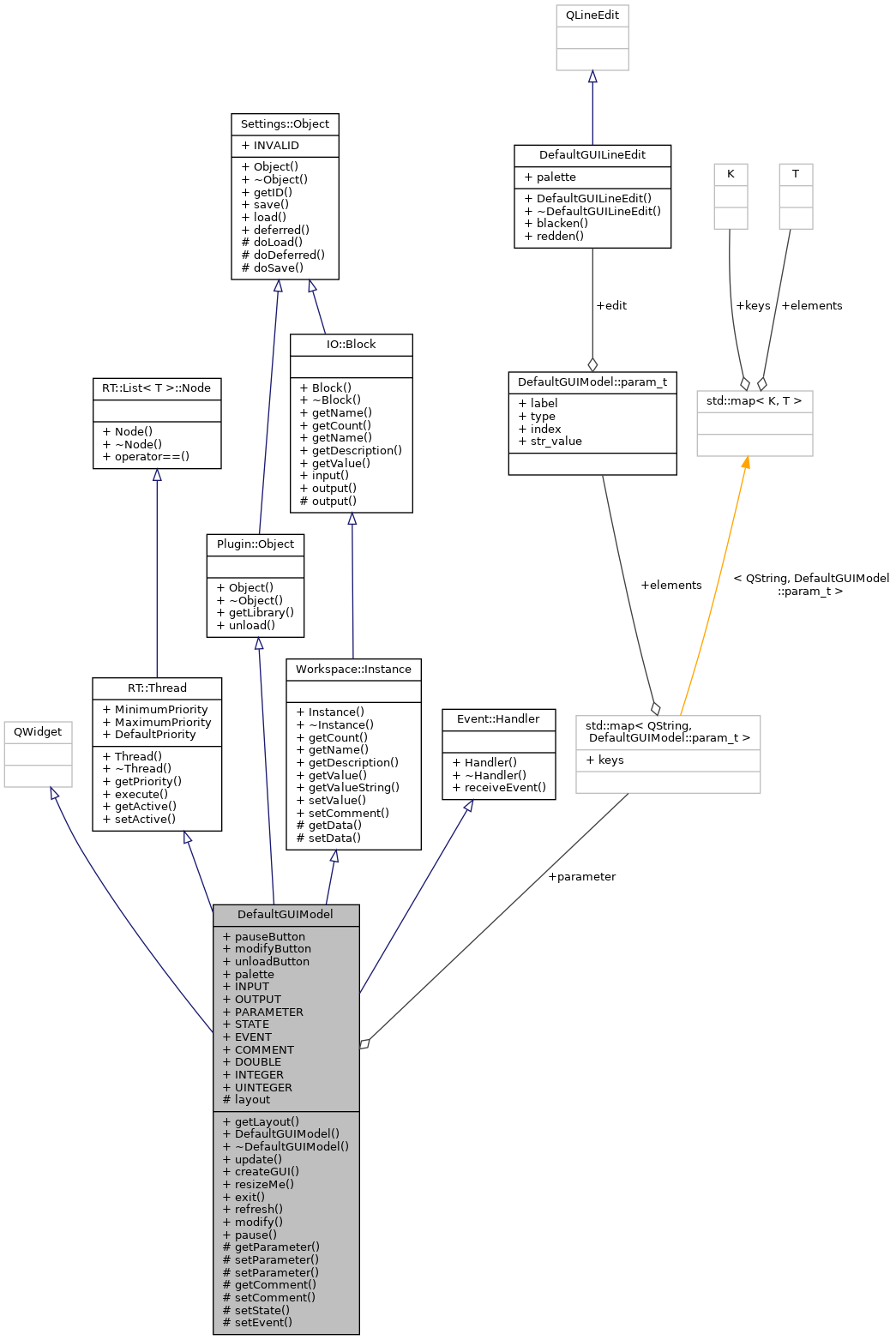

Collaboration diagram for DefaultGUIModel:

Data Structures
struct	param_t

Public Types
enum	update_flags_t { INIT, MODIFY, PERIOD, PAUSE, UNPAUSE, EXIT }

typedef Workspace::variable_t	variable_t

Public Types inherited from RT::Thread
typedef unsigned long	Priority

Public Types inherited from Settings::Object
typedef unsigned long	ID

Public Slots
void	resizeMe ()

virtual void	exit (void)

virtual void	refresh (void)

virtual void	modify (void)

virtual void	pause (bool)

Public Member Functions
QGridLayout *	getLayout (void)

	DefaultGUIModel (std::string name, variable_t *variables, size_t size)

virtual	~DefaultGUIModel (void)

virtual void	update (update_flags_t flag)

void	createGUI (DefaultGUIModel::variable_t *var, int size)

Public Member Functions inherited from RT::Thread
	Thread (Priority p=DefaultPriority)

virtual	~Thread (void)

Priority	getPriority (void) const

virtual void	execute (void)

bool	getActive (void) const

void	setActive (bool)

Public Member Functions inherited from RT::List< T >::Node
	Node (void)

virtual	~Node (void)

bool	operator== (const Node &x) const

Public Member Functions inherited from Plugin::Object
	Object (void)

virtual	~Object (void)

std::string	getLibrary (void) const

void	unload (void)

Public Member Functions inherited from Settings::Object
	Object (void)

ID	getID (void) const

State	save (void) const

void	load (const State &)

void	deferred (const State &)

Public Member Functions inherited from Workspace::Instance
	Instance (std::string name, variable_t *variables, size_t size)

virtual	~Instance (void)

size_t	getCount (IO::flags_t type) const

std::string	getName (IO::flags_t type, size_t index) const

std::string	getDescription (IO::flags_t type, size_t index) const

double	getValue (IO::flags_t type, size_t index) const

std::string	getValueString (IO::flags_t type, size_t index) const

void	setValue (size_t index, double value)

void	setComment (size_t index, std::string comment)

Public Member Functions inherited from IO::Block
	Block (std::string name, channel_t *channels, size_t size)

virtual	~Block (void)

std::string	getName (void) const

double	input (size_t index) const

double	output (size_t index) const

Public Member Functions inherited from Event::Handler
	Handler (void)

virtual	~Handler (void)

Data Fields
QPushButton *	pauseButton

QPushButton *	modifyButton

QPushButton *	unloadButton

std::map< QString, param_t >	parameter

QPalette	palette

Static Public Attributes
static const IO::flags_t	INPUT = Workspace::INPUT

static const IO::flags_t	OUTPUT = Workspace::OUTPUT

static const IO::flags_t	PARAMETER = Workspace::PARAMETER

static const IO::flags_t	STATE = Workspace::STATE

static const IO::flags_t	EVENT = Workspace::EVENT

static const IO::flags_t	COMMENT = Workspace::COMMENT

static const IO::flags_t	DOUBLE = Workspace::COMMENT<<1

static const IO::flags_t	INTEGER = Workspace::COMMENT<<2

static const IO::flags_t	UINTEGER = Workspace::COMMENT<<3

Static Public Attributes inherited from RT::Thread
static const Priority	MinimumPriority = 0

static const Priority	MaximumPriority = 100

static const Priority	DefaultPriority = MaximumPriority/2

Static Public Attributes inherited from Settings::Object
const static ID	INVALID = 0

Protected Member Functions
QString	getParameter (const QString &name)

void	setParameter (const QString &name, double value)

void	setParameter (const QString &name, const QString value)

QString	getComment (const QString &name)

void	setComment (const QString &name, const QString comment)

void	setState (const QString &name, double &ref)

void	setEvent (const QString &name, double &ref)

Protected Member Functions inherited from Workspace::Instance
double *	getData (IO::flags_t type, size_t index)

void	setData (IO::flags_t type, size_t index, double *value)

Protected Member Functions inherited from IO::Block
double &	output (size_t index)

Protected Attributes
QGridLayout *	layout

Detailed Description

A class that provides a simplified C++ interface for model creation.

Definition at line 52 of file default_gui_model.h.

Member Typedef Documentation

◆ variable_t

typedef Workspace::variable_t DefaultGUIModel::variable_t

Structure used to pass variable information to the constructor

See also: DefaultGUIModel::DefaultGUIModel(); Workspace::variable_t

Definition at line 124 of file default_gui_model.h.

Member Enumeration Documentation

◆ update_flags_t

enum DefaultGUIModel::update_flags_t

Flag passed to DefaultGUIModel::update to signal the kind of update.

See also: DefaultGUIModel::update()

Enumerator
INIT	The parameters need to be initialized.
MODIFY	The parameters have been modified by the user.
PERIOD	The system period has changed.
PAUSE	The Pause button has been activated
UNPAUSE	When the pause button has been deactivated
EXIT	When the module has been told to exit

Definition at line 131 of file default_gui_model.h.

Constructor & Destructor Documentation

◆ DefaultGUIModel()

DefaultGUIModel::DefaultGUIModel	(	std::string	name,
		DefaultGUIModel::variable_t *	var,
		size_t	size
	)

The constructor needs to be provided with a specification of the variables that will be embedded in the enclosed workspace.

See also: Workspace::Instance::Instance(); DefaultGUIModel::variable_t

Definition at line 61 of file default_gui_model.cpp.

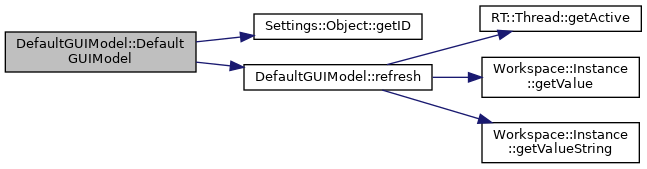

Here is the call graph for this function:

◆ ~DefaultGUIModel()

DefaultGUIModel::~DefaultGUIModel ( void )

virtual

Definition at line 72 of file default_gui_model.cpp.

Here is the call graph for this function:

Member Function Documentation

◆ createGUI()

void DefaultGUIModel::createGUI	(	DefaultGUIModel::variable_t *	var,
		int	size
	)

Function that builds the Qt GUI.

Parameters

var	The structure defining the module's parameters, states, inputs, and outputs.
size	The size of the structure vars.

See also: DefaultGUIModel::update_flags_t

Definition at line 85 of file default_gui_model.cpp.

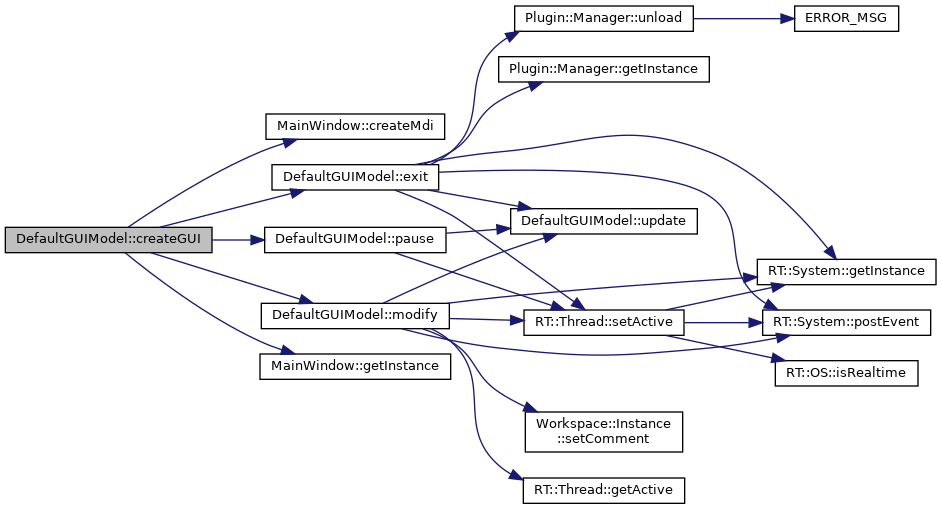

Here is the call graph for this function:

◆ exit

void DefaultGUIModel::exit ( void )

virtualslot

Function that allows the object to safely delete and unload itself.

Definition at line 213 of file default_gui_model.cpp.

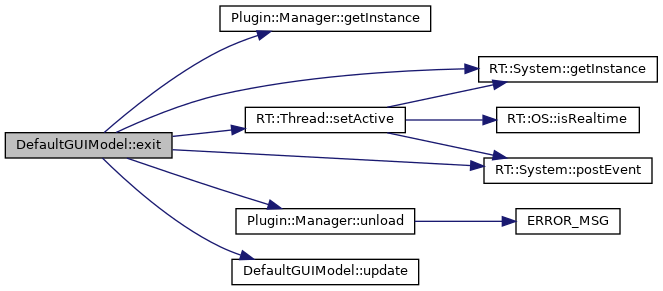

Here is the call graph for this function:

◆ getComment()

QString DefaultGUIModel::getComment ( const QString & name )

protected

Definition at line 272 of file default_gui_model.cpp.

Here is the call graph for this function:

◆ getLayout()

QGridLayout* DefaultGUIModel::getLayout ( void )

inline

Definition at line 64 of file default_gui_model.h.

◆ getParameter()

QString DefaultGUIModel::getParameter ( const QString & name )

protected

Get the value of the parameter in the GUI, and update the value within the Workspace.

Parameters

name	The parameter's name.

Returns: The value of the parameter.

Definition at line 292 of file default_gui_model.cpp.

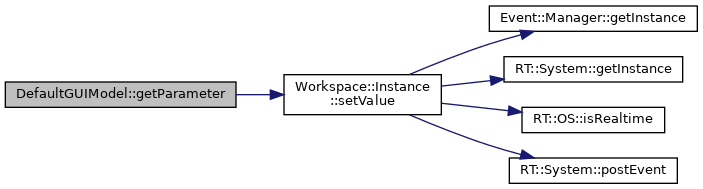

Here is the call graph for this function:

◆ modify

void DefaultGUIModel::modify ( void )

virtualslot

Function that calls DefaultGUIModel::update with the MODIFY flag

See also: DefaultGUIModel::update_flags_t

Definition at line 249 of file default_gui_model.cpp.

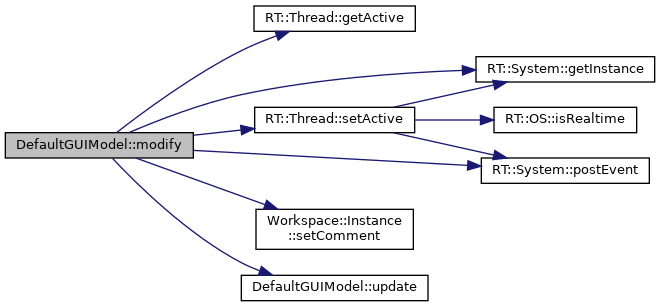

Here is the call graph for this function:

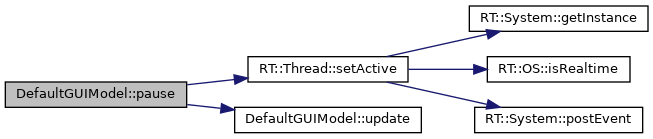

◆ pause

void DefaultGUIModel::pause ( bool p )

virtualslot

Function that pauses/unpauses the model.

Definition at line 346 of file default_gui_model.cpp.

Here is the call graph for this function:

◆ refresh

void DefaultGUIModel::refresh ( void )

virtualslot

Function that updates the GUI with new parameter values.

See also: DefaultGUIModel::update_flags_t

Definition at line 225 of file default_gui_model.cpp.

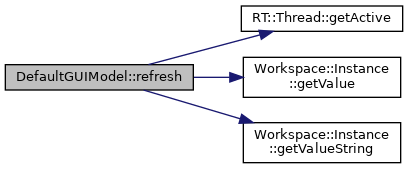

Here is the call graph for this function:

◆ resizeMe

void DefaultGUIModel::resizeMe ( )

slot

Function that resizes widgets to properly fit layouts after overloading

Definition at line 208 of file default_gui_model.cpp.

◆ setComment()

void DefaultGUIModel::setComment	(	const QString &	name,
		const QString	comment
	)

protected

Definition at line 280 of file default_gui_model.cpp.

Here is the call graph for this function:

◆ setEvent()

void DefaultGUIModel::setEvent	(	const QString &	name,
		double &	ref
	)

protected

Set the reference to this event within the Workspace via Workspace::setData().

Parameters

name	The event name.
ref	A reference to the event.

See also: Workspace::setData()

Definition at line 336 of file default_gui_model.cpp.

Here is the call graph for this function:

◆ setParameter() [1/2]

void DefaultGUIModel::setParameter	(	const QString &	name,
		const QString	value
	)

protected

Set the value of this parameter within the Workspace and GUI.

Parameters

name	The parameter's name.
value	The parameter's new value.

Definition at line 315 of file default_gui_model.cpp.

Here is the call graph for this function:

◆ setParameter() [2/2]

void DefaultGUIModel::setParameter	(	const QString &	name,
		double	value
	)

protected

Set the value of this parameter within the Workspace and GUI.

Parameters

name	The name of the parameter.
ref	A reference to the parameter.

See also: Workspace::setData()

Definition at line 304 of file default_gui_model.cpp.

Here is the call graph for this function:

◆ setState()

void DefaultGUIModel::setState	(	const QString &	name,
		double &	ref
	)

protected

Set the reference to this state within the Workspace via Workspace::setData().

Parameters

name	The state's name.
ref	A reference to the state.

See also: Workspace::setData()

Definition at line 326 of file default_gui_model.cpp.

Here is the call graph for this function:

◆ update()

void DefaultGUIModel::update ( DefaultGUIModel::update_flags_t flag )

virtual

Callback function that is called when the system state changes.

Parameters

flag	The kind of update to signal.

See also: DefaultGUIModel::update_flags_t

Definition at line 204 of file default_gui_model.cpp.

Field Documentation

◆ COMMENT

const IO::flags_t DefaultGUIModel::COMMENT = Workspace::COMMENT

static

Flag that marks a variable as a comment.

See also: Workspace::COMMENT

Definition at line 104 of file default_gui_model.h.

◆ DOUBLE

const IO::flags_t DefaultGUIModel::DOUBLE = Workspace::COMMENT<<1

static

Flag that marks a parameter as being of double type.

Definition at line 108 of file default_gui_model.h.

◆ EVENT

const IO::flags_t DefaultGUIModel::EVENT = Workspace::EVENT

static

Flag that marks a variable as an event.

See also: Workspace::STATE

Definition at line 98 of file default_gui_model.h.

◆ INPUT

const IO::flags_t DefaultGUIModel::INPUT = Workspace::INPUT

static

Flag that marks a variable as an input.

See also: Workspace::INPUT

Definition at line 74 of file default_gui_model.h.

◆ INTEGER

const IO::flags_t DefaultGUIModel::INTEGER = Workspace::COMMENT<<2

static

Flag that marks a parameter as being of integer type.

Definition at line 112 of file default_gui_model.h.

◆ layout

QGridLayout* DefaultGUIModel::layout

protected

Definition at line 215 of file default_gui_model.h.

◆ modifyButton

QPushButton* DefaultGUIModel::modifyButton

Definition at line 172 of file default_gui_model.h.

◆ OUTPUT

const IO::flags_t DefaultGUIModel::OUTPUT = Workspace::OUTPUT

static

Flag that marks a variable as an output.

See also: Workspace::OUTPUT

Definition at line 80 of file default_gui_model.h.

◆ palette

QPalette DefaultGUIModel::palette

Definition at line 184 of file default_gui_model.h.

◆ PARAMETER

const IO::flags_t DefaultGUIModel::PARAMETER = Workspace::PARAMETER

static

Flag that marks a variable as a parameter.

See also: Workspace::PARAMETER

Definition at line 86 of file default_gui_model.h.

◆ parameter

std::map<QString,param_t> DefaultGUIModel::parameter

Definition at line 183 of file default_gui_model.h.

◆ pauseButton

QPushButton* DefaultGUIModel::pauseButton

Definition at line 171 of file default_gui_model.h.

◆ STATE

const IO::flags_t DefaultGUIModel::STATE = Workspace::STATE

static

Flag that marks a variable as a state.

See also: Workspace::STATE

Definition at line 92 of file default_gui_model.h.

◆ UINTEGER

const IO::flags_t DefaultGUIModel::UINTEGER = Workspace::COMMENT<<3

static

Flag that marks a parameter as being of unsigned integer type.

Definition at line 116 of file default_gui_model.h.

◆ unloadButton

QPushButton* DefaultGUIModel::unloadButton

Definition at line 173 of file default_gui_model.h.

The documentation for this class was generated from the following files:

src/default_gui_model.h
src/default_gui_model.cpp

Data Structures

Public Types

Public Slots

Public Member Functions

Data Fields

Static Public Attributes

Protected Member Functions

Protected Attributes

Detailed Description

Member Typedef Documentation

◆ variable_t

Member Enumeration Documentation

◆ update_flags_t

Constructor & Destructor Documentation

◆ DefaultGUIModel()

◆ ~DefaultGUIModel()

Member Function Documentation

◆ createGUI()

◆ exit

◆ getComment()

◆ getLayout()

◆ getParameter()

◆ modify

◆ pause

◆ refresh

◆ resizeMe

◆ setComment()

◆ setEvent()

◆ setParameter() [1/2]

◆ setParameter() [2/2]

◆ setState()

◆ update()

Field Documentation

◆ COMMENT

◆ DOUBLE

◆ EVENT

◆ INPUT

◆ INTEGER

◆ layout

◆ modifyButton

◆ OUTPUT

◆ palette

◆ PARAMETER

◆ parameter

◆ pauseButton

◆ STATE

◆ UINTEGER

◆ unloadButton
