Event::Handler Class Reference

#include <event.hpp>

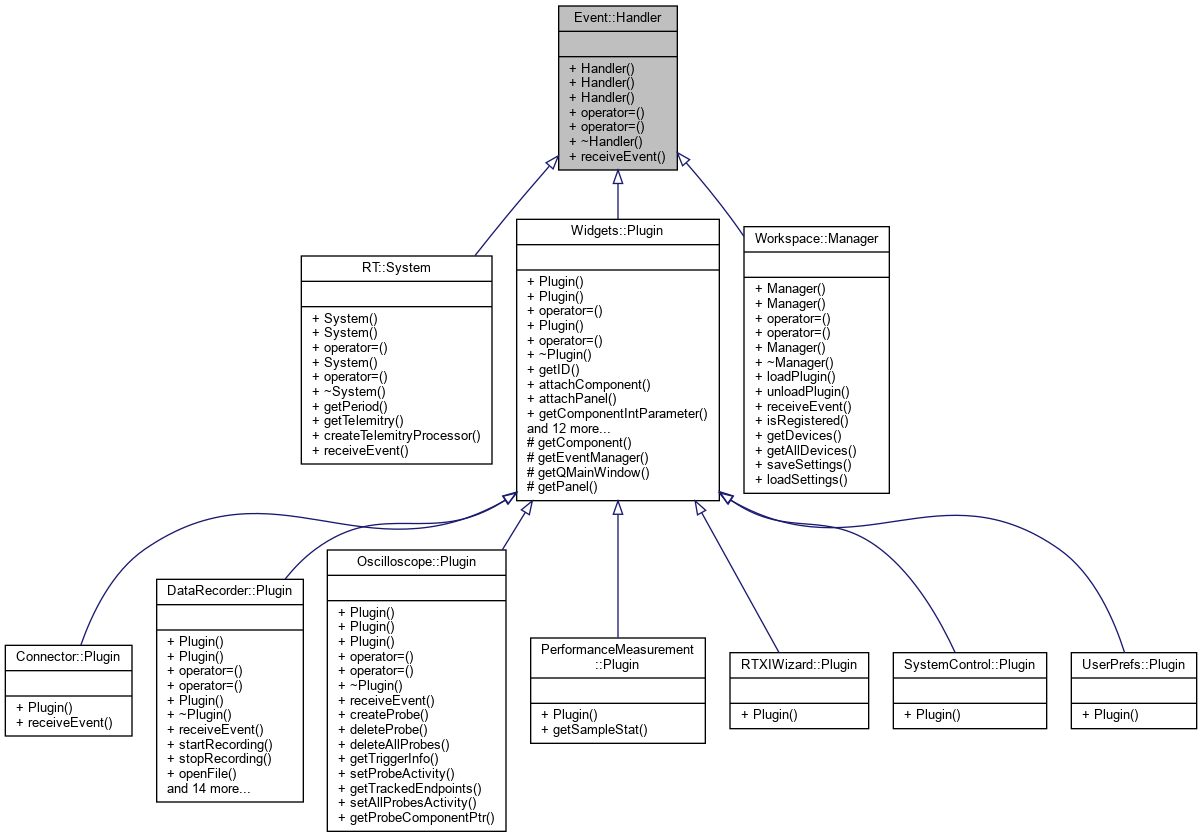

Inheritance diagram for Event::Handler:

Collaboration diagram for Event::Handler:

Public Member Functions
	Handler ()=default
	Handler (const Handler &)=default
	Handler (Handler &&)=delete
Handler &	operator= (const Handler &)=default
Handler &	operator= (Handler &&)=delete
virtual	~Handler ()=default
virtual void	receiveEvent (Object *event)=0

Detailed Description

Entity that is signaled when an event is posted.

This is an interface that allows rtxi components and plugins to define how they receive those events. All objects that hope to interact within the rtxi environment with other objects in a non-realtime context must inherit this base class.

See also

Event::Manager::postEvent()

Definition at line 227 of file event.hpp.

Constructor & Destructor Documentation

Handler() [1/3]

Event::Handler::Handler ( )

default

Handler() [2/3]

Event::Handler::Handler ( const Handler &  )

default

Handler() [3/3]

Event::Handler::Handler ( Handler &&  )

delete

~Handler()

virtual Event::Handler::~Handler ( )

virtualdefault

Member Function Documentation

operator=() [1/2]

Handler& Event::Handler::operator= ( const Handler &  )

default

operator=() [2/2]

Handler& Event::Handler::operator= ( Handler &&  )

delete

receiveEvent()

virtual void Event::Handler::receiveEvent ( Object *  event )

pure virtual

Function that is called in non-realtime every time an non-realtime event is posted.

Parameters

event

The the event being posted.

See also

Event::Object

Event::Manager::postEvent()

Implemented in Workspace::Manager, Widgets::Plugin, RT::System, Oscilloscope::Plugin, DataRecorder::Plugin, and Connector::Plugin.

---

The documentation for this class was generated from the following file:

• src/event.hpp
