Widgets::Plugin Class Reference

#include <widgets.hpp>

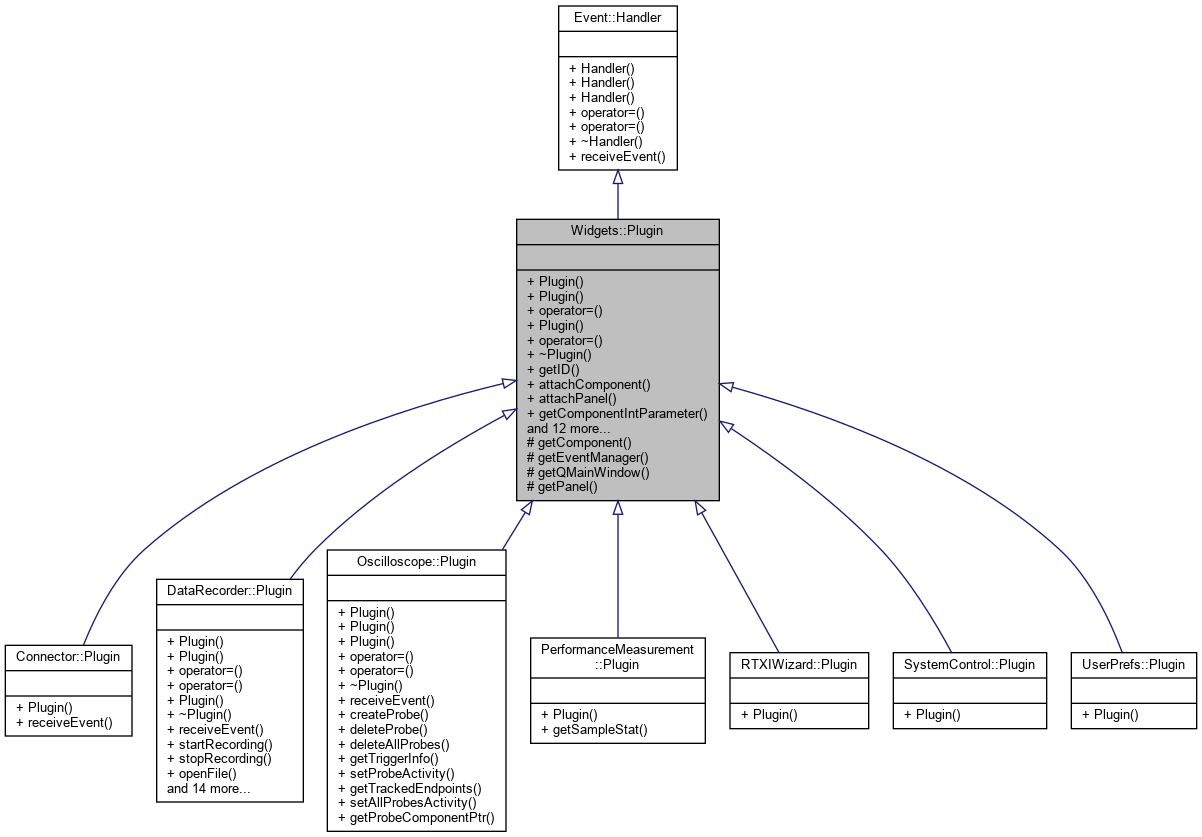

Inheritance diagram for Widgets::Plugin:

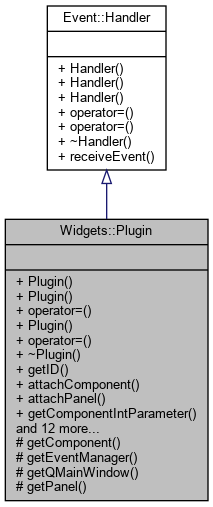

Collaboration diagram for Widgets::Plugin:

Public Member Functions
	Plugin (Event::Manager *ev_manager, std::string mod_name)
	Plugin (const Plugin &plugin)=delete
Plugin &	operator= (const Plugin &plugin)=delete
	Plugin (Plugin &&)=delete
Plugin &	operator= (Plugin &&)=delete
	~Plugin () override
size_t	getID ()
void	attachComponent (std::unique_ptr< Widgets::Component > component)
void	attachPanel (Widgets::Panel *panel)
int64_t	getComponentIntParameter (const Variable::Id &parameter_id)
uint64_t	getComponentUIntParameter (const Variable::Id &parameter_id)
double	getComponentDoubleParameter (const Variable::Id &parameter_id)
template<typename T >
int	setComponentParameter (const Variable::Id &parameter_id, T value)
std::string	getName () const
bool	getActive ()
int	setActive (bool state)
void	receiveEvent (Event::Object *event) override
std::string	getLibrary () const
void	setLibrary (const std::string &lib)
void	registerComponent ()
void	setComponentState (RT::State::state_t state)
virtual std::vector< Widgets::Variable::Info >	getComponentParametersInfo ()
Public Member Functions inherited from Event::Handler
	Handler ()=default
	Handler (const Handler &)=default
	Handler (Handler &&)=delete
Handler &	operator= (const Handler &)=default
Handler &	operator= (Handler &&)=delete
virtual	~Handler ()=default

Protected Member Functions
Widgets::Component *	getComponent ()
Event::Manager *	getEventManager ()
QMainWindow *	getQMainWindow ()
Widgets::Panel *	getPanel ()

Detailed Description

This class handles the isntantiation and deletion of Component and Plugin classes.

The responsibility is mainly the proper creation and deletion of the Component and Plugin classes, as well as the communication between the two. This class acts as a mediator between the two objects. Finally, it handles events pertaining to the module. This class, together with the Component and Panel classes, forms the Widget.

Definition at line 479 of file widgets.hpp.

Constructor & Destructor Documentation

Plugin() [1/3]

Widgets::Plugin::Plugin	(	Event::Manager *	ev_manager,
		std::string	mod_name
	)

Definition at line 457 of file widgets.cpp.

Plugin() [2/3]

Widgets::Plugin::Plugin ( const Plugin &  plugin )

delete

Plugin() [3/3]

Widgets::Plugin::Plugin ( Plugin &&  )

delete

~Plugin()

Widgets::Plugin::~Plugin ( )

override

Definition at line 463 of file widgets.cpp.

Here is the call graph for this function:

Member Function Documentation

attachComponent()

void Widgets::Plugin::attachComponent

(

std::unique_ptr< Widgets::Component >

component

)

Attaches a component to this plugin

Parameters

component

a unique pointer to the component object

Definition at line 504 of file widgets.cpp.

attachPanel()

void Widgets::Plugin::attachPanel

(

Widgets::Panel *

panel

)

Attaches a panel to this plugin

Parameters

panel

a pointer to the panel object

Definition at line 519 of file widgets.cpp.

Here is the call graph for this function:

getActive()

bool Widgets::Plugin::getActive

(

)

Checks whether the component is active

Returns

true if active, false otherwise

Definition at line 557 of file widgets.cpp.

getComponent()

Widgets::Component * Widgets::Plugin::getComponent ( )

protected

Definition at line 584 of file widgets.cpp.

getComponentDoubleParameter()

double Widgets::Plugin::getComponentDoubleParameter

(

const Variable::Id &

parameter_id

)

Retrieves a double parameter from the component object. Usually called from a non-realtime context

Parameters

parameter_id

Identification number of the parameter

Returns

the double value

Definition at line 537 of file widgets.cpp.

getComponentIntParameter()

int64_t Widgets::Plugin::getComponentIntParameter

(

const Variable::Id &

parameter_id

)

Retrieves an integer parameter from the component object. Usually called from a non-realtime context

Parameters

parameter_id

Identification number of the parameter

Returns

the integer value

Definition at line 525 of file widgets.cpp.

getComponentParametersInfo()

std::vector< Widgets::Variable::Info > Widgets::Plugin::getComponentParametersInfo ( )

virtual

Get the list of all widget parameters information

Returns

A vector of Widgets::Variable::Info representing parameter information

Definition at line 499 of file widgets.cpp.

getComponentUIntParameter()

uint64_t Widgets::Plugin::getComponentUIntParameter

(

const Variable::Id &

parameter_id

)

Retrieves an unsigned integer parameter from the component object. Usually called from a non-realtime context

Parameters

parameter_id

Identification number of the parameter

Returns

the unsigned integer value

Definition at line 531 of file widgets.cpp.

getEventManager()

Event::Manager * Widgets::Plugin::getEventManager ( )

protected

Definition at line 589 of file widgets.cpp.

getID()

size_t Widgets::Plugin::getID

(

)

get the component ID

Returns

ID of the widget assigned by the realtime system

getLibrary()

std::string Widgets::Plugin::getLibrary ( ) const

inline

Get the name of the library from which the object was loaded.

Returns

The library file the object from which the object was created.

Definition at line 616 of file widgets.hpp.

getName()

std::string Widgets::Plugin::getName ( ) const

inline

Retrieves the name of the plugin

Returns

a string with the module name

Definition at line 586 of file widgets.hpp.

getPanel()

Widgets::Panel * Widgets::Plugin::getPanel ( )

protected

Definition at line 594 of file widgets.cpp.

getQMainWindow()

QMainWindow* Widgets::Plugin::getQMainWindow ( )

protected

operator=() [1/2]

Plugin& Widgets::Plugin::operator= ( const Plugin &  plugin )

delete

operator=() [2/2]

Plugin& Widgets::Plugin::operator= ( Plugin &&  )

delete

receiveEvent()

void Widgets::Plugin::receiveEvent ( Event::Object *  event )

overridevirtual

Function called when a new event is fired

Parameters

event

pointer to Qt event object

Implements Event::Handler.

Reimplemented in Oscilloscope::Plugin, DataRecorder::Plugin, and Connector::Plugin.

Definition at line 543 of file widgets.cpp.

Here is the call graph for this function:

registerComponent()

void Widgets::Plugin::registerComponent

(

)

Register the internal component to RT::System registry

Definition at line 474 of file widgets.cpp.

setActive()

int Widgets::Plugin::setActive

(

bool

state

)

sets the activity state of the component

Parameters

state

Boolean representing activity state

Returns

0 if successful, -1 otherwise

Definition at line 567 of file widgets.cpp.

setComponentParameter()

template<typename T >

int Widgets::Plugin::setComponentParameter ( const Variable::Id &  parameter_id, T  value  )

inline

Sets the component parameter

This function sends an event that will be handled by the realtime system. The event comprises with the parameter to change and the new value.

Parameters

parameter_id	The id of the widget's parameter to change
value	The new value to change the parameter to. accepted value types are: int, double, uint64_t, and std::string. Anything else is considered an error.

Returns

an error code 0 for success, and -1 for failure

Definition at line 554 of file widgets.hpp.

Here is the call graph for this function:

setComponentState()

void Widgets::Plugin::setComponentState

(

RT::State::state_t

state

)

Set the internal component state

Parameters

state

an RT::State::state_t value to set the component to

Definition at line 485 of file widgets.cpp.

setLibrary()

void Widgets::Plugin::setLibrary ( const std::string &  lib )

inline

Sets the library location from which this widget was created.

Parameters

lib	The library location

Definition at line 623 of file widgets.hpp.

---

The documentation for this class was generated from the following files:

• src/widgets.hpp
• src/widgets.cpp
